Beskrivelse

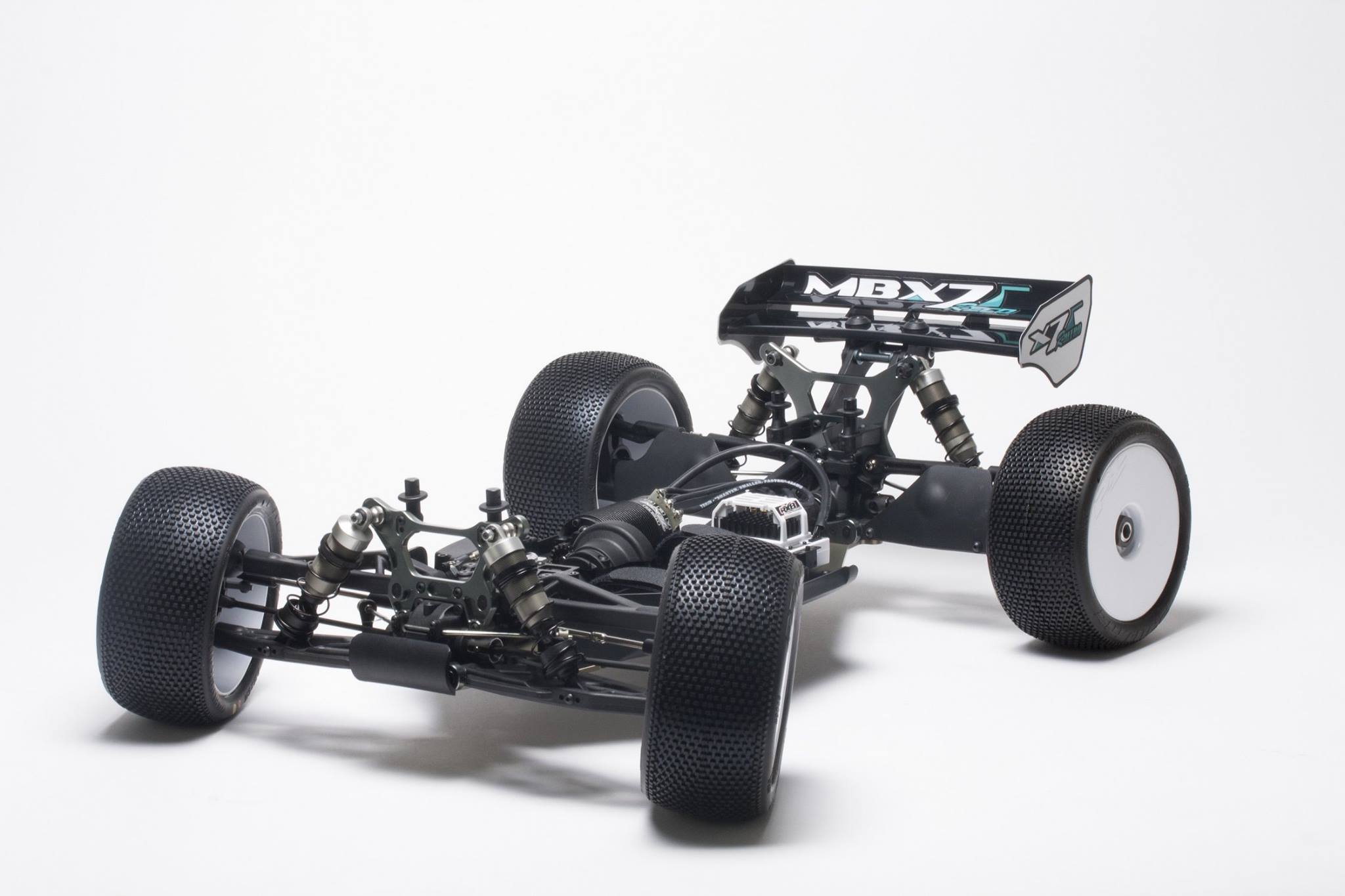

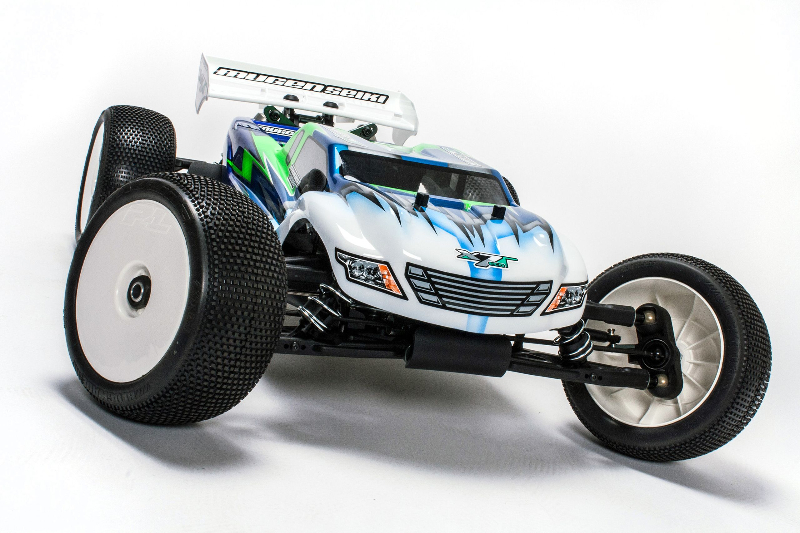

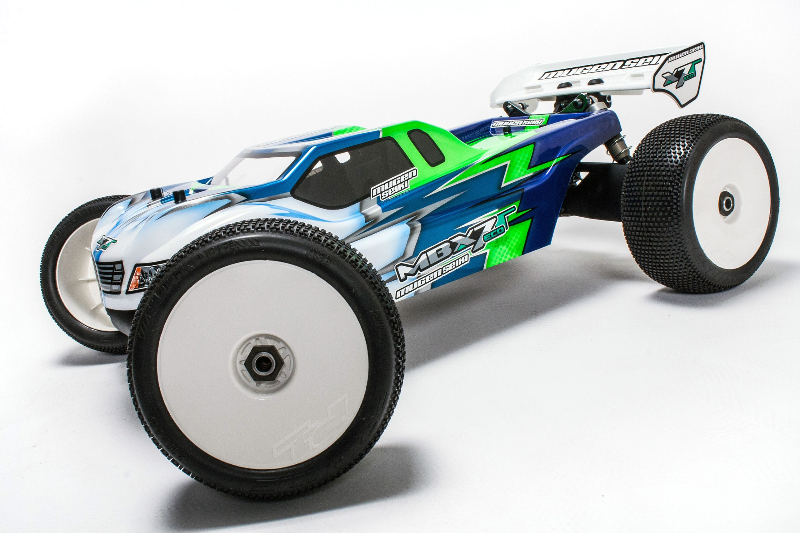

Mugen Seiki MBX-7TR ECO
1/8 4WD Electric Competition Truggy
Mugen Seiki er stolte af at præsentere udgivelsen af MBX7TR ECO 1/8 el Truggy!
MBX7TR ECO kit har mange high-end forbedringer i affjedring, styring og drivlinjen for at skabe den ultimative 1/8 el off-road truck
MBX7TR ECO kit har mange high-end forbedringer i affjedring, styring og drivlinjen for at skabe den ultimative 1/8 el off-road truck
Specifikationer
Længde: — mm
Bredde: 413mm
Bredde: 413mm
Højde: — mm
Vægt: ca. 4kg
Vægt: ca. 4kg
Akselafstand: 373-378mm
Firehjulstræk
Chassis type: 3,0mm A-7075 aluminium
MBX-7TR ECO Features
3mm A-7075 hard anodized chassis
Lightweight 46T spur gear
Straight cut conical and ring gears
Fully adjustable steering with new geometry, servo saver, and Ackerman plate
Front/Rear 16mm hard-anodized threaded shocks with 3.5mm shock shafts and slim rubber boots
5mm A7075 aluminum front shock tower
4mm A7075 aluminum rear shock tower
5mm A7075 aluminum lower suspension mounts for optimized geometry
Narrow wheel hub (11.5)
Stylish cab forward body
E2125-B revised lower front suspension arm
Improved servo saver spring (E2316)
Lightweight 46T spur gear
Straight cut conical and ring gears
Fully adjustable steering with new geometry, servo saver, and Ackerman plate
Front/Rear 16mm hard-anodized threaded shocks with 3.5mm shock shafts and slim rubber boots
5mm A7075 aluminum front shock tower
4mm A7075 aluminum rear shock tower
5mm A7075 aluminum lower suspension mounts for optimized geometry
Narrow wheel hub (11.5)
Stylish cab forward body
E2125-B revised lower front suspension arm
Improved servo saver spring (E2316)
MBX-7TR ECO kommer som kit og mangler
ESC
Motor
Batteri
Radio udstyr
Servo
Hjul
ESC
Motor
Batteri
Radio udstyr
Servo
Hjul
Differentials Oils:
Front – 10,000 wt Oil (B0317)
Center – 15,000 wt Oil (B0337)
Rear – 7,000 wt Oil (B0323)
Center – 15,000 wt Oil (B0337)
Rear – 7,000 wt Oil (B0323)
Shocks and Springs:
Front – 650 wt Oil (B0348) / φ1.4 L70/6.75T Spring (E2555) / φ1.3 8H Taper Piston (E2525)
Rear – 650 wt Oil (B0348) / φ1.4 L85/7.75 Spring (E2561) / φ1.3 8H Taper Piston (E2525)
Rear – 650 wt Oil (B0348) / φ1.4 L85/7.75 Spring (E2561) / φ1.3 8H Taper Piston (E2525)
E2020 – MBX7TR ECO 1/8 electric Truggy Kit (off road):

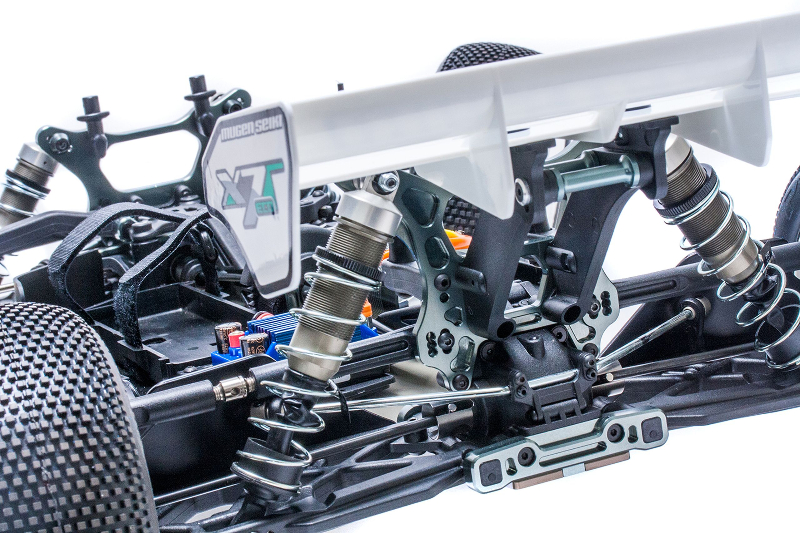

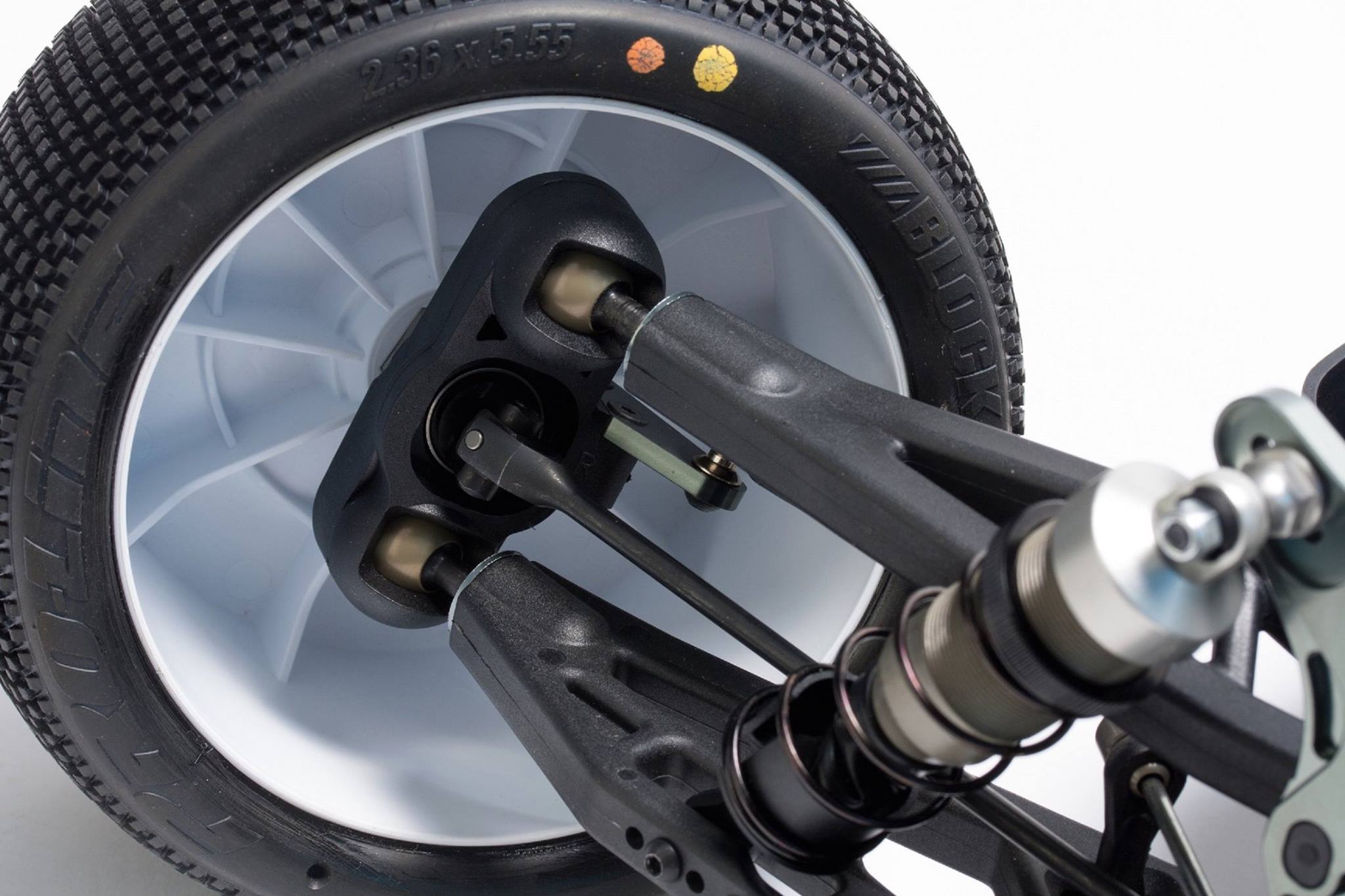

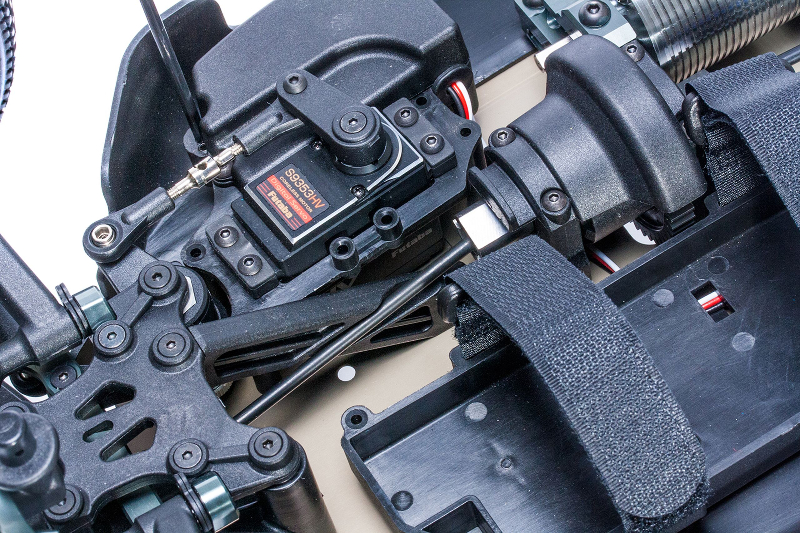

Mugen Seiki concentrated on the making the suspension on the MBX7TR even better with new 16mm front and rear shocks that improve traction and better feeling on high grip conditions. The new shocks are also outfitted with new 1.4mm shock springs. The new 1.4mm shock springs reduce chassis roll, increase traction, improve jumping and are more stability on bumpy tracks. This means you can drive even harder than ever before! The 7TR has a new 3mm A7075 hard-anodized chassis with increase side bends to increase strength and to give a more precise felling on all surfaces. The MBX7TR uses the E2129 front upright, which has a trailing axle position to improve overall steering. The steering Ackerman plate from the 7R buggy is also included in the 7TR to add more adjustability. The servo saver spring was also update to the E2316 to improve the precision of the trucks steering dramatically. The drive train of the MBX7TR has been changed and improved with the use of a new universal style driveshaft for both the front and rear of the truck. This greatly improves the feel of the truck on bumpy surfaces. The universal driveshaft’s will make the overall drive train much smoother and will spin with less friction.
