Traxxas TRX-4 Sport Scale Crawler 4x4 Truck

Traxxas TRX-4 Sport Scale Crawler 4x4 Truck 1/10 RTR







Formålsbygget

TRX-4 Sport kombinerer en uovertruffen frihøjde og køredynamik fra Traxxas portaksler, høj friktions Canyon® Trail-dæk og et lettere karrosseri til en performance-fokuseret ny TRX-4. Sportens unikke stødfangere, hjul og krop blev designet til øget klatring og alsidighed. Uanset om det er trail løb eller en hardcore teknisk crawl, hjælper TRX-4 Sports evne og præstationsbygget platform med at tage dit udendørs eventyr til et nyt niveau.

Features:

Trail-Tuned XL-5 HV Waterproof Electronic Speed Control

  • Fully waterproof design
  • Traxxas EZ-Set® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
  • Two stage low voltage protection (LVD)
  • Five drive profiles:
  • Sport Mode — forward / brake / reverse
  • Race Mode — forward / brake / no reverse
  • Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Motor

  • Powerful Titan™ 21T reverse rotation motor with internal cooling fan
  • Precise preset gear mesh adjustments
  • Motor retention separate from gear mesh

Portal Axles

  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts

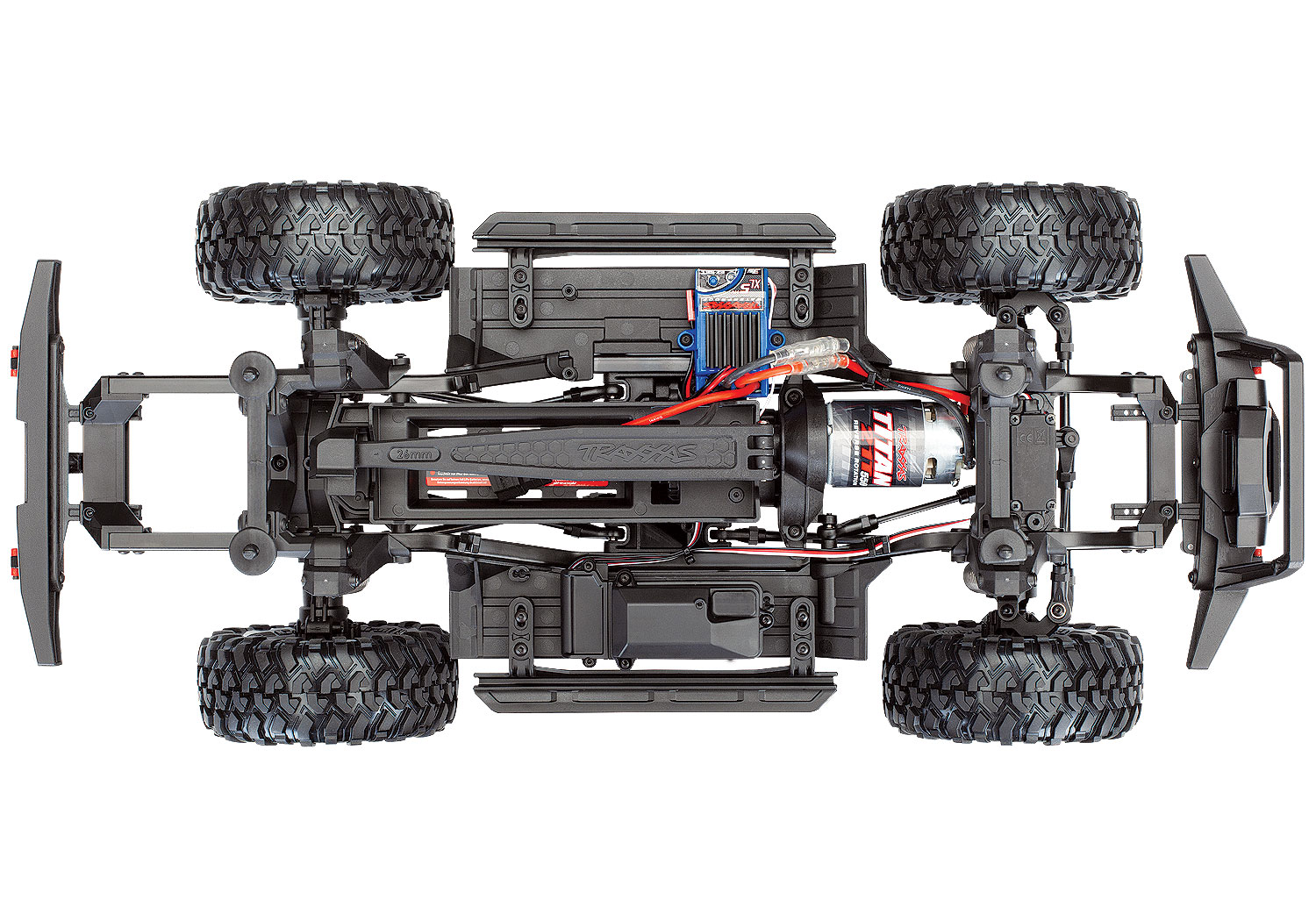

Rigid Steel Frame

  • 1.5 mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails

Drivetrain

  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Spool-locked front and rear differentials
  • Steel gear transfer case

Innovative Battery Compartment

  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Transmission

  • Single-speed with steel gears
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing

Steering

  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer

Suspension

  • Front — 3 link with panhard
  • Rear — triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5mm diameter steel link rods with 4mm threaded ends

Aluminum GTS Shocks

  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

  • Rugged black 5-spoke wheels
  • Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12mm steel hex
  • TQ™ 2.4GHz 2-channel transmitter
  • Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
  • Sealed Ball Bearings
  • Hex Hardware with Rust-Resistant Black Oxide Coating



TRX-4 Sport Specs TRX-4 Sport Specs

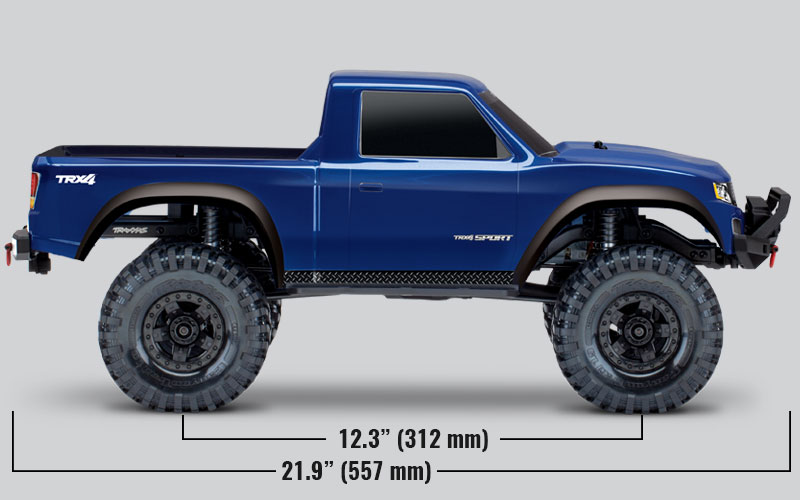

Length: 21.93 inches (557mm)

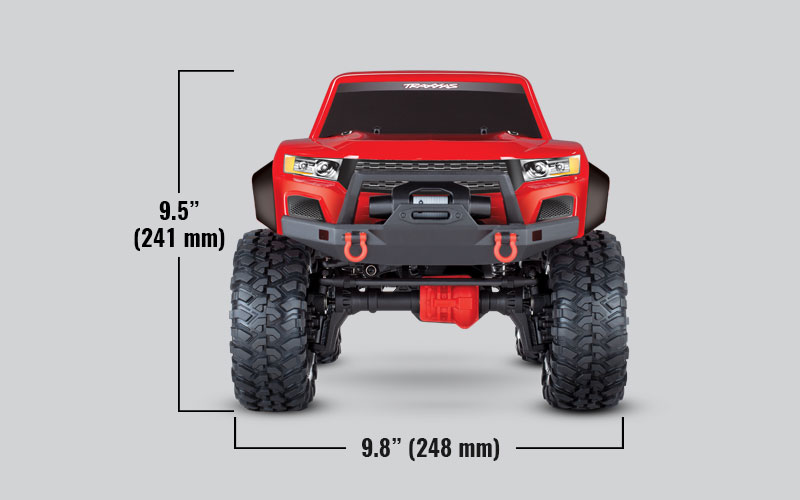

Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 5.79lb (2.63kg)
Height: 9.47 inches (241mm)
Wheelbase: 12.28 inches (312mm)
Approach Angle: 58.82°
Departure Angle: 45.83°
Breakover Angle: 58.93°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ 2.4GHz 2-Channel Transmitter
Receiver: 6519
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H



XL-5 HV ESC Specs:

  • Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
  • Case Size: 1.23” W x 2.18” D x 1.04” H
  • Weight: 74 g
  • Motor Limit: 21-turns (550 size)
  • On Resistance Forward: 0.004 Ohms
  • On Resistance Reverse: 0.004 Ohms
  • Peak Current - Forward: 100A
  • Peak Current - Reverse: 100A
  • Braking Current: 60A
  • Continuous Current: 18A
  • BEC Voltage: 6.0 VDC
  • BEC Current: 1A
  • Power Wire: 14 Gauge / 5”
  • Input Harness Wire: 26 Gauge / 14.5”
  • ransistor Type: MOSFET
  • PWM Frequency: 1700Hz
  • Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
  • Thermal Protection: Thermal Shutdown
  • Single-button setup: Yes, Traxxas EZ-Set®


Profile selection:

  • Sport Mode: 100% FWD, 100% brakes, 100% REV
  • Race Mode: 100% FWD, 100% brakes, no REV
  • Training Mode:* 50% FWD, 100% brakes, 50% REV
  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

* Patented

Motor Specs:

  • Type: High-torque brushed motor
  • Size: 550
  • Weight: 390 g
  • Length: 78mm (Overall) - 57 mm (Can) - 38.9 mm diameter
  • Turns: 21T reverse rotation
  • Voltage: 16.8V



What’s In The Box:

  • TRX-4, Ready-To-Drive® model
  • XL-5 HV waterproof electronic speed control
  • Titan™ 21T reverse rotation motor
  • TQ™ 2.4GHz radio system
  • High quality maintenance tools

Det mangler du:

  • Batterier: TRX-4 kan køre på NiMH (4–7 cell) og LiPo (2s–3s) batterier. Priser på batterier ændrer sig hele tiden, kontakt os hvis du ønsker at købe batteri til, så finder vi dagens pris.
  • Lader: Lader til valgte batteri.
  • AA Alkaline Batterier: Fire AA alkaline batterier til fjernbetjening.
